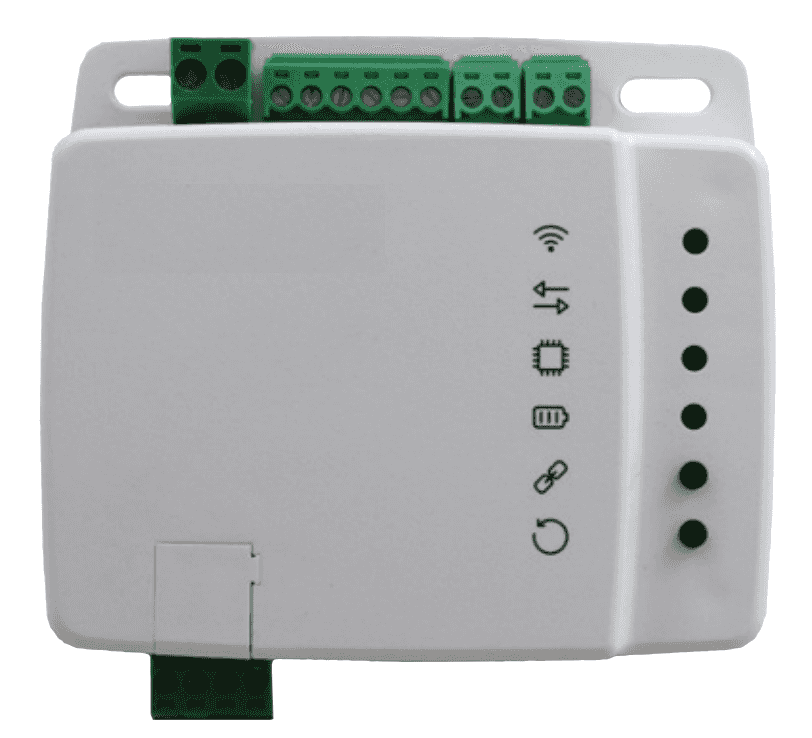

DKN+ 3rd Party Thermostat Adaptor

Model: AZAI6WSPDKC

Refrigerant: R-410A

P1P2 - All VRV indoor units, SkyAir units and FDMQ or FFQ mini and multi split indoor units
S21 - All other mini and multi split indoor units (except AXVJU series)

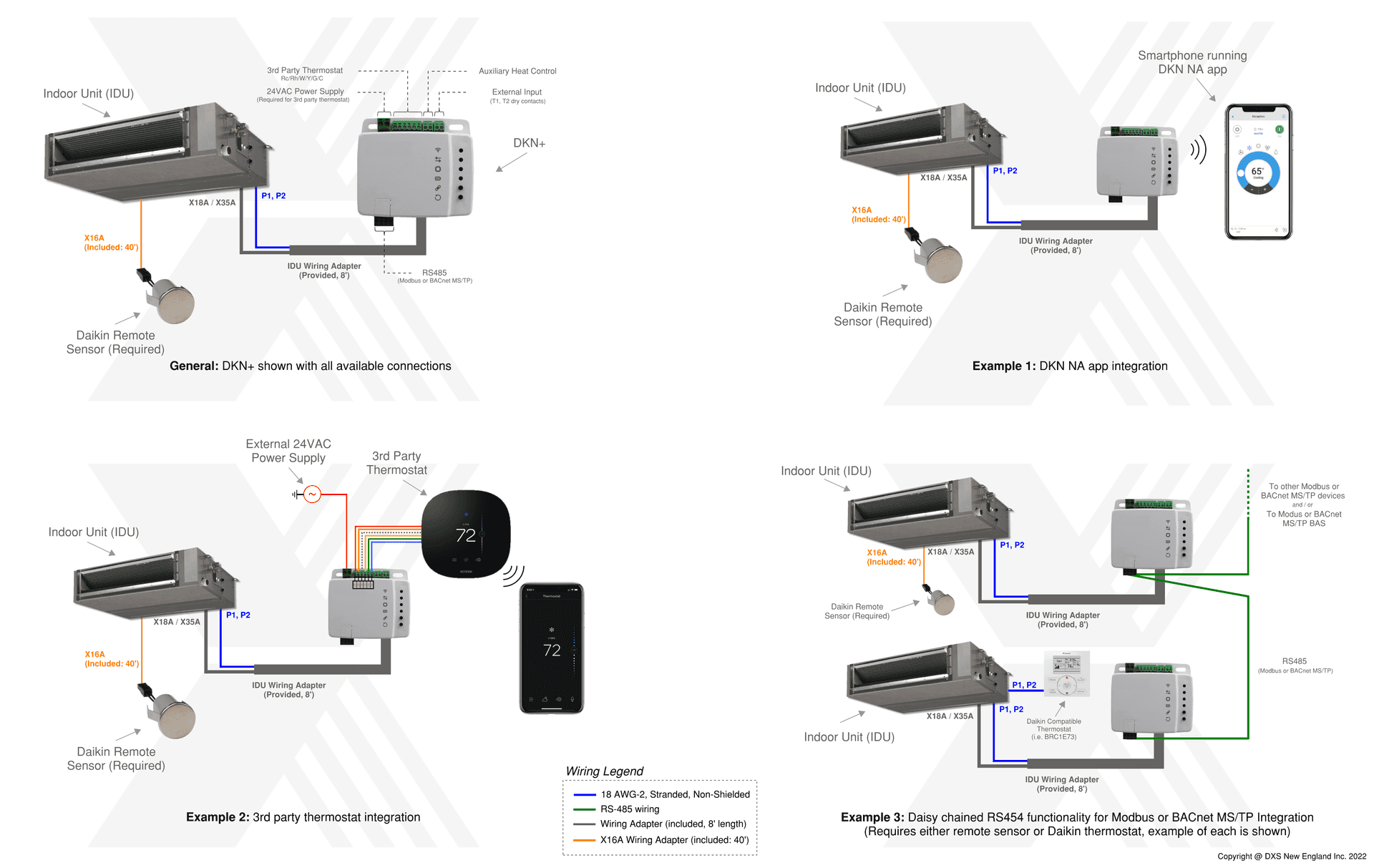

Features and Wiring diagrams below represent use with P1P2 indoor units

Hardwired thermostat integration: Pre-programmed algorithms to maintain the inverter-driven efficiency of Daikin systems despite only receiving simple "Heat / Cool" commands from conventional thermostats
Modbus or BACnet™ MS/TP integration: Simple indoor unit read / write points
Cloud WiFi smart phone app: Adds WiFi capability to any Daikin indoor unit using Daikin smart phone app
*BETA* Cloud API integration: Integration with pre-approved 3rd party thermostats or home automation systems via API over the cloud
NOTE: The above options are not all compatible with each other, contact your local Daikin Manufacturer's Representative

Cross compatible with P1P2 and S21 indoor units (except AXVJU split systems)
Powered by indoor unit, except if hardwired to a 3rd party thermostat
Requires a 24V connection when hardwired to a 3rd party thermostat (which in turn powers the thermostat)
Fan speed and error codes cannot be adjusted or monitored by 3rd party thermostat when using hardwired integration
Wiring harness for connection to indoor unit provided (some models require an extra adaptor)
