POLARA Large Capacity Wall Mounts Cooling Only

2.5 to 3 Tons | Model: RK_A + FTX_A

Refrigerant: R-32

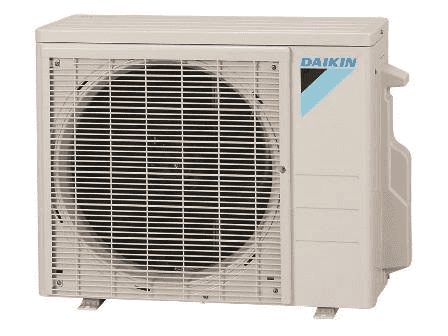

Model: RK_A

Model: FTX_A

Dimensions (H x W x D)

30-36 MBH: 29-1/2" × 34-1/4" × 12-5/8"

Dimensions (H x W x D)

30-36 MBH: 12-15/16" × 48-13/16" × 10-15/16"

				Piping
Model Number	Nominal Size (MBH)	Indoor Unit CFM (High/Medium/Low/Super Low)	Nominal Cooling @95°F (BTU/HR)	Lineset Size	Max Total Length (ft)	Max Vertical Length (ft)
FTXV30AVJU9 + RKV30AVJU9	30	925 / 794 / 600 / 533	31,400	1/4" x 5/8"	98	65
FTXV36AVJU9 + RKV36AVJU9	36	971 / 794 / 600 / 533	34,400	1/4" x 5/8"	98	65

Cooling operation range: 50°F to 115°F
Low ambient cooling to -22°F available with wind baffle
Full low ambient cooling kits available
Capacities shown are at 230V (review engineering manual for potential differences at 208V)

Intelligent eye operation
4 selectable fan speeds with Quiet and Auto
3-D airflow control with horizontal and vertical flaps
Titanium Apatite Photocatalytic Air Purifying Filter
Auto restart after power failure (reinstates previous settings)
Powerful and ECO+ modes
Hydrophilic blue fin coating of indoor unit for enhanced coil cleanliness and lifespan
Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.

		MCA (A) / MOP (A)
Type	Voltage	30 MBH	36 MBH
Outdoor unit	208-230V/1ph	21.8 / 25	21.9 / 25


30	FTXV30AVJU9 + RKV30AVJU9
36	FTXV36AVJU9 + RKV36AVJU9
