POLARA Large Capacity Wall Mounts Standard Heat Pump (5F)

2.5 to 3 Tons | Model: RX_A + FTX_A

Refrigerant: R-32

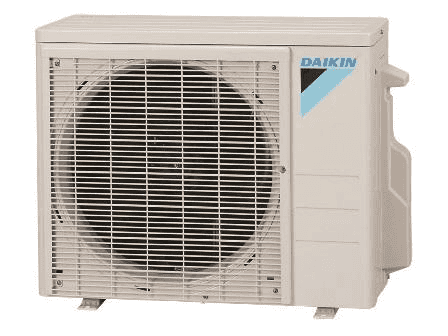

Model: RX_A

Model: FTX_A

Dimensions (H x W x D)

30-36 MBH: 29-1/2" × 34-1/4" × 12-5/8"

Dimensions (H x W x D)

30-36 MBH: 12-15/16" × 48-13/16" × 10-15/16"

				Heating Capacities (BTU/HR)		Piping
Model Number	Nominal Size (MBH)	Indoor Unit CFM (High/Medium/Low/Super Low)	Nominal Cooling @95°F (BTU/HR)	43°FWB	5°FWB	Lineset Size	Max Total Length (ft)	Max Vertical Length (ft)
FTXV30AVJU9 + RXV30AVJU9	30	1,091 / 900 / 671 / 498	31,400	34,800	22,800	1/4" x 5/8"	98	65
FTXV36AVJU9 + RXV36AVJU9	36	1,091 / 900 / 671 / 498	34,400	36,000	23,600	1/4" x 5/8"	98	65

Cooling operation range: 50°F to 115°F
Low ambient cooling to -4°F available with wind baffle
Heating operation range: 5°F to 64°F
Capacities shown are at 230V (review engineering manual for potential differences at 208V)
CFMs shown are in heating mode. Cooling mode CFMs are identical to cooling only model.

Intelligent eye operation
4 selectable fan speeds with Quiet and Auto
3-D airflow control with horizontal and vertical flaps
Titanium Apatite Photocatalytic Air Purifying Filter
Auto restart after power failure (reinstates previous settings)
Powerful and ECO+ modes
Hydrophilic blue fin coating of indoor unit for enhanced coil cleanliness and lifespan
Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.

		MCA (A) / MOP (A)
Type	Voltage	30 MBH	36 MBH
Outdoor unit	208-230V/1ph	22 / 25	22 / 25


30	FTXV30AVJU9 + RXV30AVJU9
36	FTXV36AVJU9 + RXV36AVJU9
