OTERRA Wall Mounts (BX Series) Standard Heat Pump (5F)

0.75 to 2 Tons  |  Model: RX_BX + FTX_BX

Refrigerant: R-410A

***Warning: Transitioned to R-32*** - See replacement RXF_AX + FTXF_AX

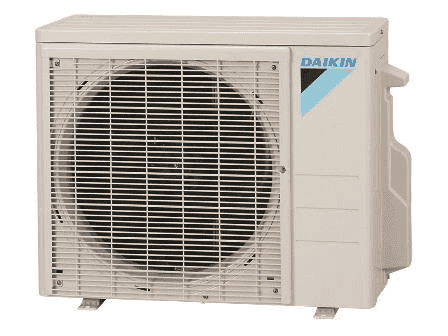

Model: RX_BX

Heat Pump (Standard Heating to 5F)
Max VerticalLength (ft)49' (9-12 MBH)66' (18-24 MBH)Max Total Length (ft)66' (9-12 MBH)98' (18-24 MBH)

Model: FTX_BX

Dimensions (H x W x D)

9-12 MBH: 21-11/16" x 26-1/2" x 11-3/16"
18-24 MBH: 27-13/32" x 36-5/8" x 13-13/16"

Dimensions (H x W x D)

9-12 MBH: 11-1/3" x 30-29/32" x 9-27/32"
18-24 MBH: 11-11/16" x 39-1/2" x 11-1/3"
Heating Capacities (BTU/HR)Piping
Model NumberNominal Size (MBH)Nominal Cooling @95°F (BTU/HR)43°FWB 5°FWBLineset SizeMax Total Length (ft)Max Vertical Length (ft)Energy Star Certified
FTX09BXVJU + RX09BXVJU98,90010,0004,4801/4" x 3/8"6649Yes
FTX12BXVJU + RX12BXVJU1210,90013,5006,0501/4" x 3/8"6649yes
FTX18BXVJU + RX18BXVJU1818,00021,6009,6801/4" x 1/2"9866Yes
FTX24BXVJU + RX24BXVJU2421,20023,60010,5801/4" x 5/8"9866No

  • Cooling operation range: 50°F to 115°F Low ambient cooling to -4°F available with wind baffle Heating operation range: 5°F to 65°F CFMs shown are in heating mode. Cooling mode CFMs are identical to cooling only model.

Features

  • Colored LED indication light on wall mount 5 selectable fan speed with smooth stepping for best sound performance (Quiet mode as low as 19 dBA) Auto restart after power failure (reinstates previous settings) Powerful and ECO+ modes Hydrophilic blue fin coating of indoor unit for enhanced coil cleanliness and lifespan Detachable drain pan (for cleaning and for easy blower and fan motor removal) Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.

Electrical Information

MCA (A) / MOP (A)
TypeVoltage9 MBH12 MBH18 MBH24 MBH
Outdoor unit208-230V/1ph8.7 / 158.7 / 1516.4 / 2016.4 / 20

Submittal Data Sheets

9FTX09BXVJU + RX09BXVJU
12FTX12BXVJU + RX12BXVJU
18FTX18BXVJU + RX18BXVJU
24FTX24BXVJU + RX24BXVJU
