Cold Climate (Atmosphera Series) Heat Pump (-13F) Wall Mounted
0.75 to 2 Tons | Model: RXM + FTXM_W

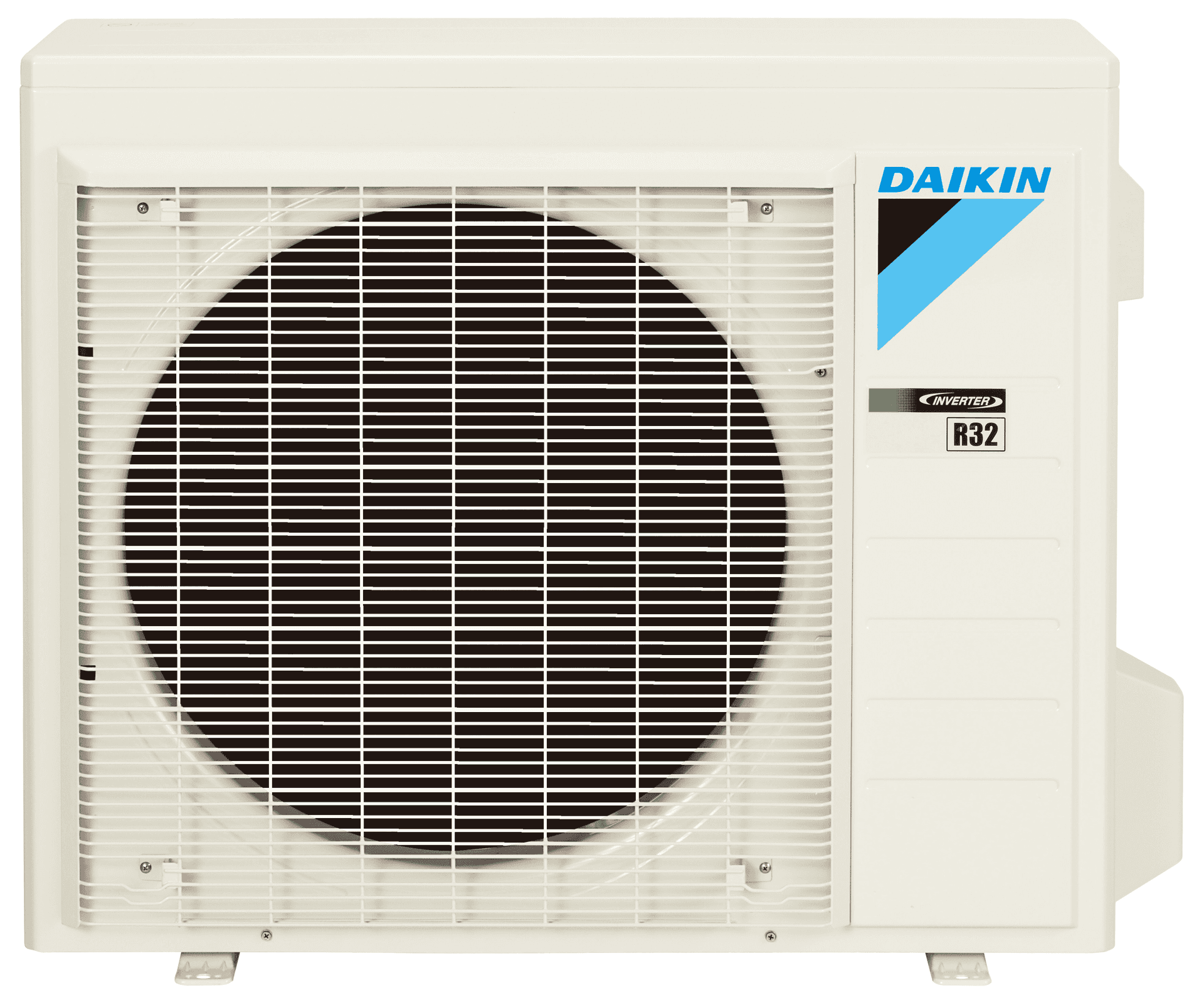

Model: RXM

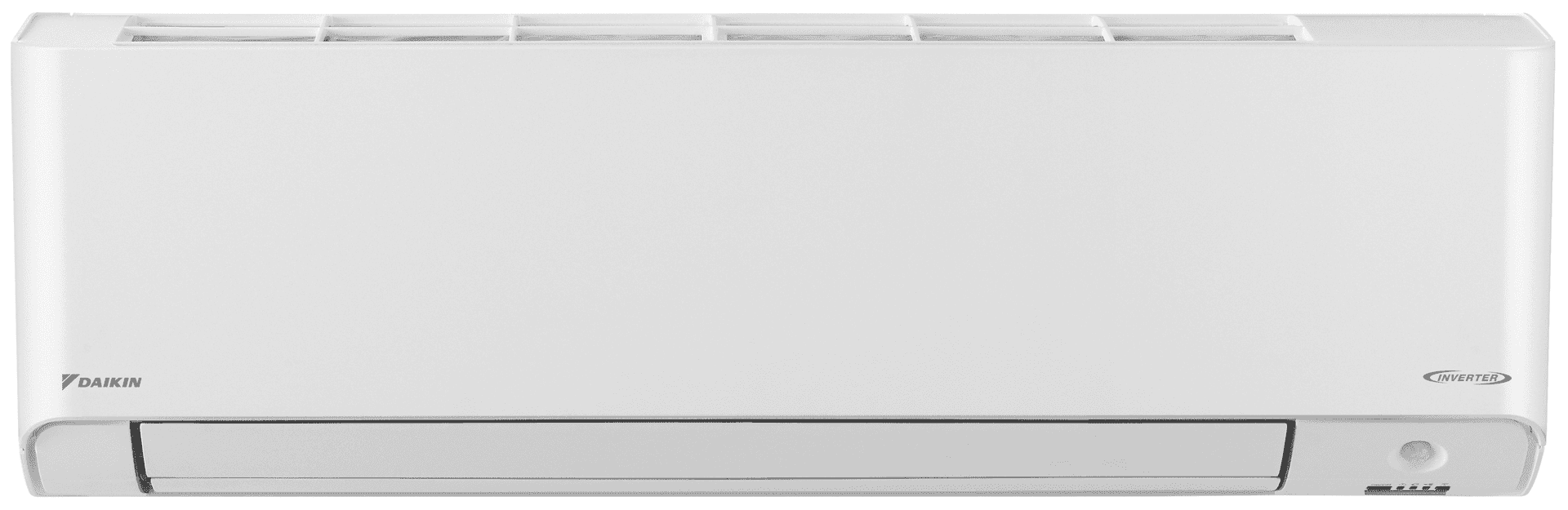

Model: FTXM_W
| Heating Capacities (BTU/HR) | Piping | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Nominal Size (MBH) | Indoor Unit CFM (High/Medium/Low/Super Low) | Nominal Cooling @95°F (BTU/HR) | 43°FWB | 5°FWB | -4°FWB | -13°FWB | Lineset Size | Max Total Length (ft) | Max Vertical Length (ft) | Energy Star Certified |
| FTXM09WVJU9 + RXM09WVJU9 | 9 | 516 / 371 / 304 / 251 | 9,000 | 19,500 | 11,000 | 10,500 | 10,000 | 1/4" x 3/8" | 82 | 65 | No |
| FTXM12WVJU9 + RXM12WVJU9 | 12 | 558 / 413 / 339 / 254 | 12,000 | 22,600 | 13,600 | 12,150 | 10,700 | 1/4" x 3/8" | 82 | 65 | No |
| FTXM18WVJU9 + RXM18WVJU9 | 18 | 777 / 558 / 466 / 413 | 18,000 | 30,200 | 21,600 | 18,900 | 16,200 | 1/4" x 1/2" | 98 | 82 | No |
| FTXM24WVJU9 + RXM24WMVJU9 | 24 | 844 / 607 / 498 / 452 | 21,600 | 32,200 | 24,000 | 21,000 | 18,000 | 1/4" x 5/8" | 98 | 82 | No |
Features
- Cold climate Atmosphera with confirmed operation to -13°F and 100% capacity at 5°F
- Anti-Corrosion Treatment on Heat Exchanger
- Intelligent eye operation
- 5 selectable fan speeds with Quiet and Auto
- 3-D airflow control with horizontal and vertical flaps
- Titanium Apatite Photocatalytic Air Purifying Filter
- Auto restart after power failure (reinstates previous settings)
- Powerful and ECO+ modes
- Hydrophilic blue fin coating of indoor unit for enhanced coil cleanliness and lifespan.
- Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.
Electrical Information
| MCA (A) / MOP (A) | |||||
|---|---|---|---|---|---|
| Type | Voltage | 9 MBH | 12 MBH | 18 MBH | 24 MBH |
| Outdoor unit | 208-230V/1ph | 12.3 / 15 | 12.3 / 15 | 18.8 / 20 | 19.8 / 20 |
