Cold Climate (Aurora Series) Heat Pump (-13F) Wall Mounted

0.75 to 2 Tons | Model: RXT + FTXV_A

Refrigerant: R-32

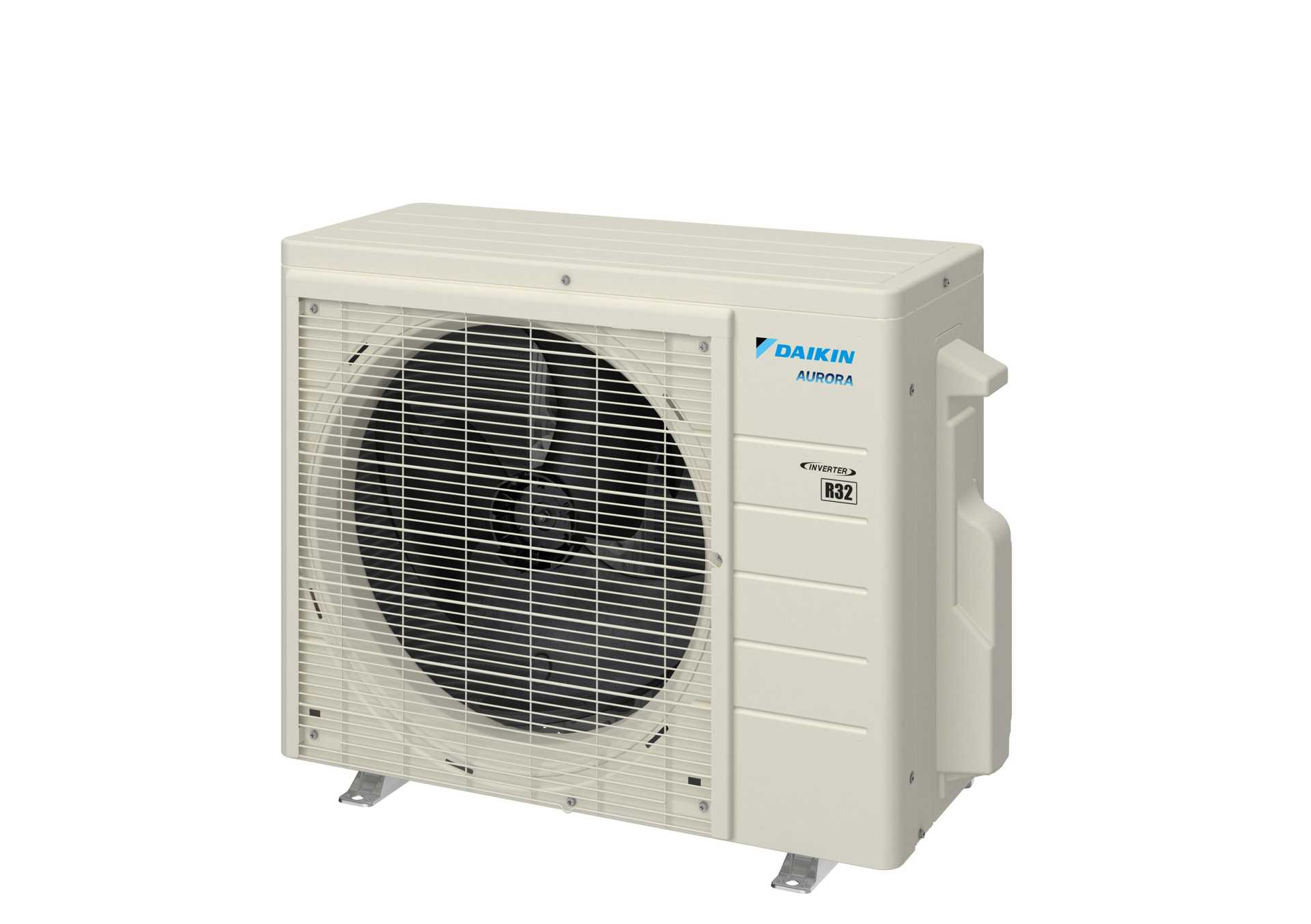

Model: RXT

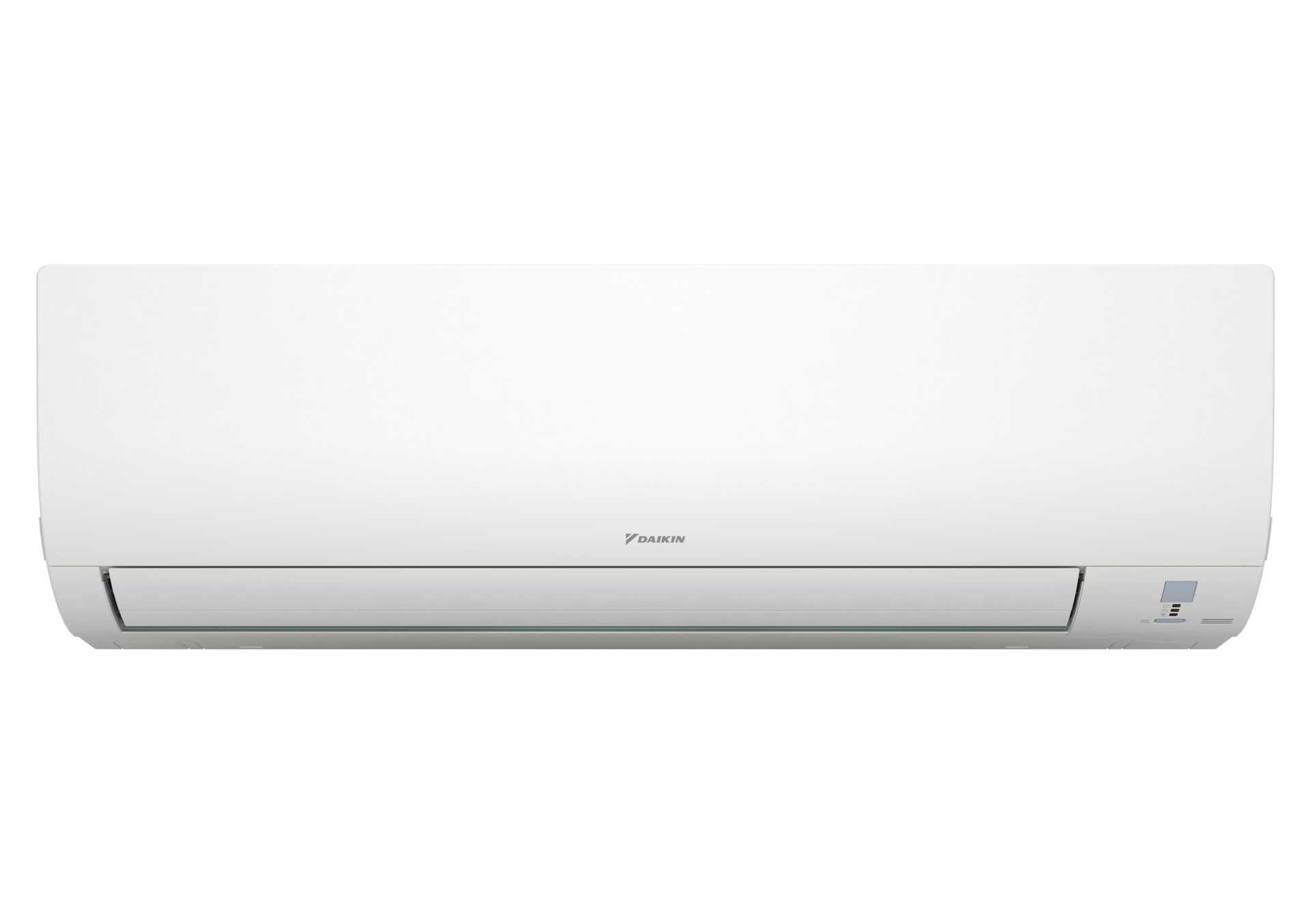

Model: FTXV

Dimensions (H x W x D)

9-12 MBH: 21-15/16" x 26-9/16" x 11-3/16"

15-24 MBH: 29-1/2" x 34-1/4" x 12-5/8"

Dimensions (H x W x D)

9-12 MBH: 11-1/4" x 30-5/16" x 8-3/4"

15-24 MBH: 11-5/8" x 39" x 10-3/8"

				Heating Capacities (BTU/HR)				Piping
Model Number	Nominal Size (MBH)	Indoor Unit CFM (High/Medium/Low/Super Low)	Nominal Cooling @95°F (BTU/HR)	43°FWB	5°FWB	-4°FWB	-13°FWB	Lineset Size	Max Total Length (ft)	Max Vertical Length (ft)	Energy Star Certified
FTXV09AVJU9 + RXT09AVJU9	9	381 / 272 / 230 / 166	9,000	10,900	10,900	8,810	6,630	1/4" X 3/8"	65	49	Yes*
FTXV12AVJU9 + RXT12AVJU9	12	392 / 293 / 226 / 166	10,600	13,500	13,500	10,920	8,220	1/4" X 3/8"	65	49	Yes*
FTXV15AVJU9 + RXT15AVJU9	15	540 / 470 / 381 / 339	15,000	18,300	18,300	14,790	11,140	1/4" X 1/2"	98	65	Yes*
FTXV18AVJU9 + RXT18AVJU9	18	565 / 463 / 378 / 335	18,000	21,600	21,600	18,360	15,120	1/4" X 1/2"	98	65	Yes*
FTXV24AVJU9 + RXT24AVJU9	24	629 / 501 / 378 / 335	22,400	24,000	24,000	20,400	16,800	1/4" X 5/8"	98	65	Yes*

All nominal capacities represent maximum capacities Cooling operation range: 50°F to 115°F Low ambient cooling to -4°F available with wind baffle Heating operation range: -13°F to 65°F

Cold climate Aurora with confirmed operation to -13°F and 100% capacity at 5°F Anti-Corrosion Treatment on Heat Exchanger Built in Wi-Fi 5 selectable fan speeds with Quiet and Auto 3-D airflow control with horizontal and vertical flaps Titanium Apatite Photocatalytic Air Purifying Filter Auto restart after power failure (reinstates previous settings) Powerful and ECO+ modes Hydrophilic blue fin coating of indoor unit for enhanced coil cleanliness and lifespan. Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.

		MCA (A) / MOP (A)
Type	Voltage	9 MBH	12 MBH	15 MBH	18 MBH	24 MBH
Outdoor unit	208-230V/1ph	11.6 / 15.0	14.6 / 15.0	16.0 / 20.0	21.4 / 25.0	21.6 / 25.0
