SkyAir Heat Pump (Cold Climate) 33" x 33" Cassettes

1.5-4 Tons | Model: RZA + FCA_A

Refrigerant: R-32

Model: RZA

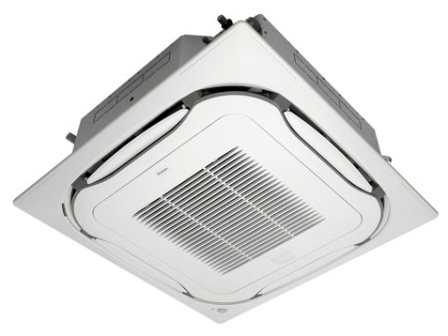

Model: FCA_A

Dimensions (H x W x D)

18-48 MBH: 34-1/4'' x 43-5/16'' x 18-1/8''

Dimensions (H x W x D)

18-24 MBH: 9–11/16'' × 33–1/16'' × 33–1/16''

30-48 MBH: 11–11/32'' × 33–1/16'' × 33–1/16''

				Heating Capacities (BTU/HR)			Piping
Model Number	Nominal Size (MBH)	Indoor Unit CFM (High/Medium/Low)	Nominal Cooling @95°F (BTU/HR)	43°FWB	5°FWB	-4°FWB	Lineset Size	Max Total Length (ft)	Max Vertical Length (ft)	Energy Star Certified
FCA18AAVJU + RZA18AAVJU	18	742/618/477	18,000	20,000	20,000	19,300	3/8'' x 5/8''	230	98	No
FCA24AAVJU + RZA24AAVJU	24	777/618/477	24,000	27,000	21,400	20,800	3/8'' x 5/8''	230	98	No
FCA30AAVJU + RZA30AAVJU	30	1,059/882/671	30,000	34,000	37,000	28,700	3/8'' x 5/8''	230	98	No
FCA36AAVJU + RZA36AAVJU	36	1,253/918/671	36,000	40,000	37,600	30,100	3/8'' x 5/8''	230	98	No
FCA42AAVJU + RZA42AAVJU	42	1,253/971/741	42,000	47,000	37,800	30,100	3/8'' x 5/8''	230	98	No
FCA48AAVJU + RZA48AAVJU	48	1,253/971/741	48,000	54,000	37,800	30,100	3/8'' x 5/8''	230	98	No

Nominal Cooling Capacities @ 95°F DB OAT;
Heating operation range -4°F to 60°F (Extended heating down to -13°F)
Cooling operation range 23°F to 122°F
Estimated heating capacities at lower ambient temperatures do not include derates for defrost operation.
Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates).
Requires separate decoration panel (available with self cleaning filter option).

SkyAir cold climate model with up to 100% heating capability down to 0°F.
Long pipe lengths with 98' vertical separation and 230' total length.
Low outdoor unit sound between 56-59 dB(A).
Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT).
New single chassis size across all RZA models.

Factory-installed coil refrigerant leak detection sensor.
Dispersion mode with higher airflow rate for refrigerant dispersion in the event of a leak.
True 360° Airflow and three room sensors enables optimized occupant comfort and efficiency.
Sound pressure levels as low as 28 db(A).
Factory installed washable filters as standard with options for MERV 13 filters.
OA integration options for up to 20% OA using a fresh air intake kit that adds 2.36'' of height to the unit.
Independently configurable auxiliary heat integration settings.
Roundflow, 4-way, and 3-way blow configurability.
MERV 13 air filter kit available (not compatible with self cleaning filter decoration panel).
Individual air louver control.
Integral condensate pump with up to 26-1/2'' lift.
10 year parts warranty.
