Cooling Only

1.5-4 Tons | Model: RZR + FTA_A

Refrigerant: R-410A

***Warning: Transitioned to R-32***

Model: RZR

Nominal Cooling Capacities @ 95°F DB OAT;
Cooling operation range 23°F to 122°F
Low ambient cooling to 0F available with wind baffle
Full low ambient cooling kits to -40°F available
Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates).

Long pipe lengths with 98' vertical separation and 164' to 230' total length.
Low outdoor unit sound between 57-58 dB(A).
Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT).

Factory-installed coil refrigerant leak detection sensor.
Dispersion mode with higher airflow rate for refrigerant dispersion in the event of a leak.

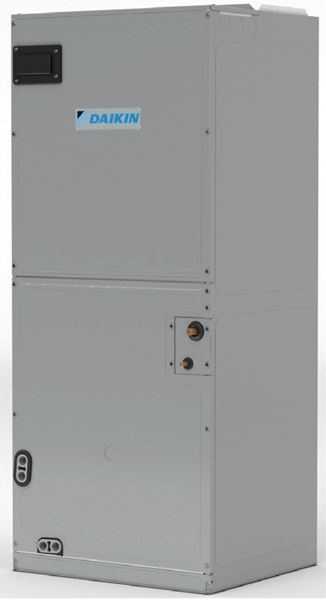

Full multi-position air handler capable of upflow, downflow, horizontal right, and horizontal left installation.
Designed for quiet operation, with sound levels as low as 38.4 dB(A).
High efficiency EC motors to deliver nominal CFM at up to 0.9” w.g. static.
Designed with less than 2% air leakage when tested in accordance with ASHRAE standard 193.
Optional electric heat accessories from 3kW to 25kW with single point power.
Easily integrate with third party accessories such as a humidifier or economizer with on-board contacts.
Options for gravity drained condensate or field installed pump.
10 year parts warranty.
