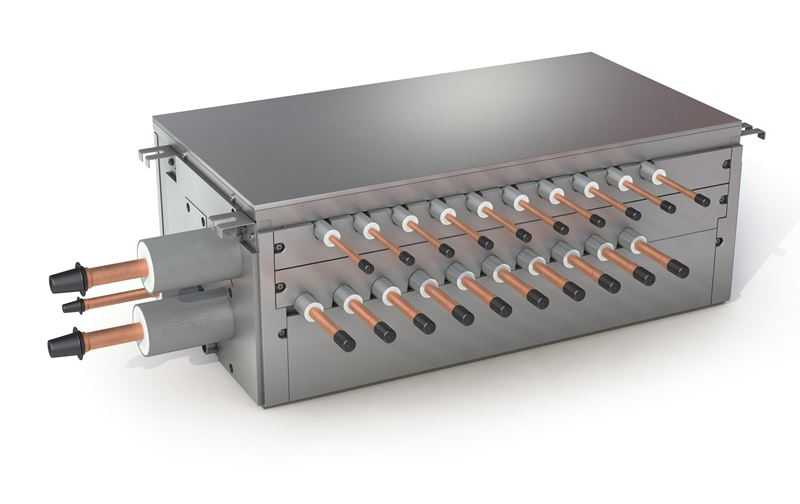

Standard Multi-Ports 12'' Tall
10, 12 Ports | Model: BS_Q
***Warning: Transitioning to R-32***
| Model Number | Number of Ports | Nominal Size Per Port (MBH) | Operating Sound db(A) | Max Sound dB(A) | Dimensions (HxWxD) | Voltage | MCA (A) | MOP (A) |
|---|---|---|---|---|---|---|---|---|
| BS10Q54TVJ | 10 | 54 | 40 | 48 | 11-3/4'' × 32-5/16'' × 18-15/16'' | 208/230V - 1ph | 1 | 15 |
| BS12Q54TVJ | 12 | 54 | 40 | 48 | 11-3/4'' × 32-5/16'' × 18-15/16'' | 208/230V - 1ph | 1.2 | 15 |
Notes
Features
- Low profile height 11-3/4''for all models
- Low sound levels
- Ability to connect multiple indoor units to a single port
Submittal Data Sheets
| 10 Ports | 12 Ports | |
|---|---|---|
| 54 | BS10Q54TVJ | BS12Q54TVJ |
