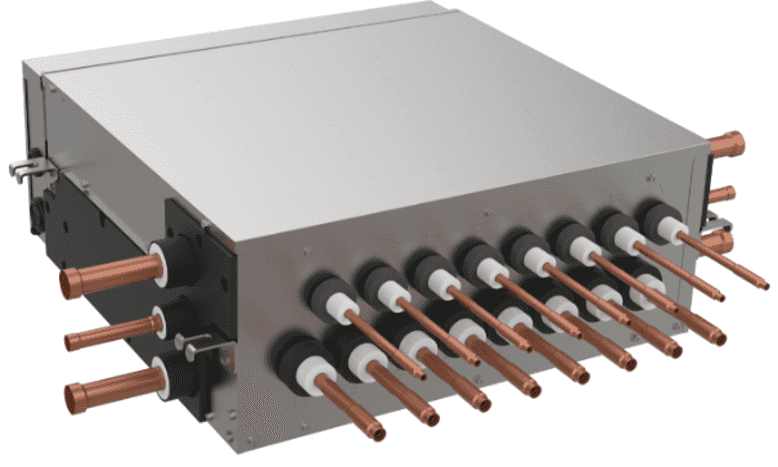

Slim Pipe-Through Flex Multi-Ports 10'' Tall

4, 6, 8 Ports | Model: BSF_A

Refrigerant: R-32

Model Number	Number of Ports	Nominal Size Per Port (MBH)	Operating Sound db(A)	Max Sound dB(A)	Dimensions (HxWxD)	Voltage	MCA (A)	MOP (A)
BSF4A54AAVJ	4	54	36	43	9-1/2'' × 19-5/16'' × 23-3/4''	208/230V - 1ph	0.4	15
BSF6A54AAVJ	6	54	37.5	46	9-1/2'' × 33-7/16'' × 28-3/16''	208/230V - 1ph	1.9	15
BSF8A54AAVJ	8	54	37.5	46	9-1/2'' × 33-7/16'' × 28-3/16''	208/230V - 1ph	1.9	15

Right and left piping connections available
R32 Compliance Features:
Safety shut off valves already integrated into all BSB units
Backup power supply factory installed so valves close per code in the event of power loss
Connectible to BS-EB Ventilated Enclosure if needed
Design flexibility – single and multi-port units can be combined in one system
Provides low ambient cooling capacity for HP units down to -4F
Pass through configuration allows reduction in required REFNETs
Ease of maintenance with access to EEV heads from side access panels
Installation simplicity with no drain pan and no drain piping needed
Low profile height of 9-1/2'' for all models

	4 Ports	6 Ports	8 Ports
54	BSF4A54AAVJ	BSF6A54AAVJ	BSF8A54AAVJ
