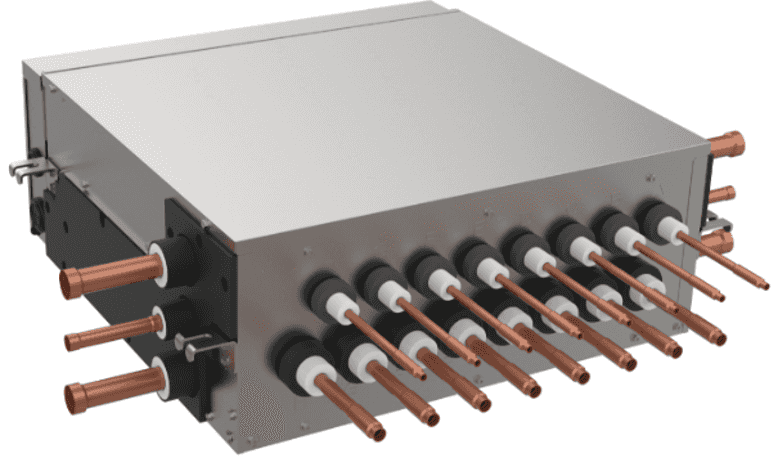

Slim Pipe-Through Flex Multi-Ports 10'' Tall
4, 6, 8 Ports | Model: BSF_Q
***Warning: Transitioning to R-32***
| Model Number | Number of Ports | Nominal Size Per Port (MBH) | Operating Sound db(A) | Max Sound dB(A) | Dimensions (HxWxD) | Voltage | MCA (A) | MOP (A) |
|---|---|---|---|---|---|---|---|---|
| BSF4Q54TVJ | 4 | 54 | 37 | 47 | 9-1/2'' × 13-3/4'' × 23-3/4'' | 208/230V - 1ph | 0.4 | 15 |
| BSF6Q54TVJ | 6 | 54 | 40.5 | 50 | 9-1/2'' × 23-3/8'' × 23-3/4'' | 208/230V - 1ph | 0.6 | 15 |
| BSF8Q54TVJ | 8 | 54 | 40.5 | 50 | 9-1/2'' × 23-3/8'' × 23-3/4'' | 208/230V - 1ph | 0.8 | 15 |
Notes
Features
- Low profile height of 9-1/2'' for all models
- Consists of electronic expansion valves for low sound levels
- Configurable electrical box
- Right and left piping connections available
- Pass through connections. Conditions apply.
- Ability to connect multiple indoor units to a single port
- Technical cooling feature to allow for cooling operation down to -4F. See technical cooling design guide for more information.
Submittal Data Sheets
| 4 Ports | 6 Ports | 8 Ports | |
|---|---|---|---|
| 54 | BSF4Q54TVJ | BSF6Q54TVJ | BSF8Q54TVJ |
