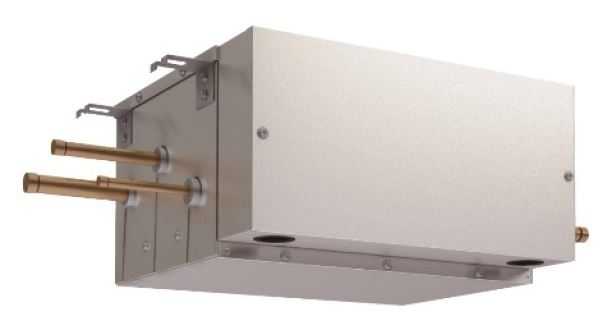

Mini Single-Ports 8'' Tall
1 Port | Model: BSQ_T
***Warning: Transitioning to R-32***
| Model Number | Number of Ports | Nominal Size Per Port (MBH) | Operating Sound db(A) | Max Sound dB(A) | Dimensions (HxWxD) | Voltage | MCA (A) | MOP (A) |
|---|---|---|---|---|---|---|---|---|
| BSQ36TVJ | 1 | 36 | 35 | 40 | 8-1/8'' x 15-1/4'' x 12-13/16'' | 208/230V - 1ph | 0.1 | 15 |
| BSQ60TVJ | 1 | 60 | 41 | 45 | 8-1/8'' x 15-1/4'' x 12-13/16'' | 208/230V - 1ph | 0.1 | 15 |
| BSQ96TVJ | 1 | 96 | 41 | 45 | 8-1/8'' x 15-1/4'' x 12-13/16'' | 208/230V - 1ph | 0.1 | 15 |
Notes
Features
- Low profile height of 8-1/8'' for all single-port models
- Consists of electronic expansion valves for low sound levels
- Ability to connect multiple indoor units to a single port
- Technical cooling feature to allow for cooling operation down to -4F. See technical cooling design guide for more information.
