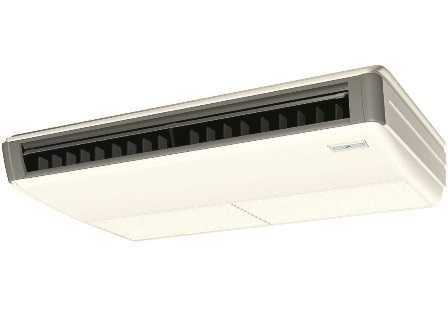

Ceiling Suspended

12 to 36 MBH | Model: FXHQ_M

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Dimensions (HxWxD)	Voltage	MCA (A)	MOP (A)
FXHQ12MVJU	12	410 / 340	12,000	13,500		208/230V - 1ph	0.8	15
FXHQ24MVJU	24	710 / 600	24,000	27,000		208/230V - 1ph	1	15
FXHQ36MVJU	36	830 / 670	36,000	40,000		208/230V - 1ph	1.4	15

Notes

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT.
Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower.
Recommended heating operation range 59-80°F DB EAT and 80% RH or lower.
Always use Daikin WebXpress software to understand true capacities at design conditions.

Features

Slim 8'' tall exposed ceiling suspended unit.
Wide air discharge outlet distributes a comfortable airflow throughout the entire space with a throw up to 25ft.
Sound pressure levels as low as 33 db(A).
Factory installed washable long-life filters.
Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.
10 year parts warranty.

Compatible Controls 2
R-32 undefined

Compatible Adaptors 3
R-32 undefined

Submittal Data Sheets

	208/230V - 1ph
12	FXHQ12MVJU
24	FXHQ24MVJU
36	FXHQ36MVJU
