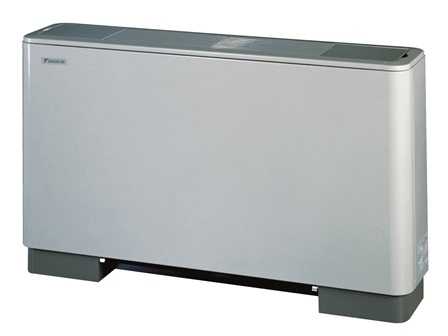

Floor Standing Exposed

7.5 to 24 MBH | Model: FXLQ_M

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Dimensions (HxWxD)	Voltage	MCA (A)	MOP (A)
FXLQ07MVJU9	7.5	245 / 210	7,500	8,500		208/230V - 1ph	0.3	15
FXLQ09MVJU9	9.5	245 / 210	9,500	10,500		208/230V - 1ph	0.3	15
FXLQ12MVJU9	12	280 / 210	12,000	13,500		208/230V - 1ph	0.5	15
FXLQ18MVJU9	18	490 / 380	18,000	20,000		208/230V - 1ph	0.6	15
FXLQ24MVJU9	24	560 / 420	24,000	27,000		208/230V - 1ph	0.6	15

Notes

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT.
Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower.
Recommended heating operation range 59-80°F DB EAT and 80% RH or lower.
Always use Daikin WebXpress software to understand true capacities at design conditions.

Features

Space saving floor standing unit that can be freestanding or wall mounted.
Sound pressure levels as low as 32 db(A).
Factory installed washable long-life filters.
Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.
10 year parts warranty.

Compatible Controls 2
R-32 undefined

Compatible Adaptors 3
R-32 undefined

Submittal Data Sheets

	208/230V - 1ph
7.5	FXLQ07MVJU9
9.5	FXLQ09MVJU9
12	FXLQ12MVJU9
18	FXLQ18MVJU9
24	FXLQ24MVJU9
