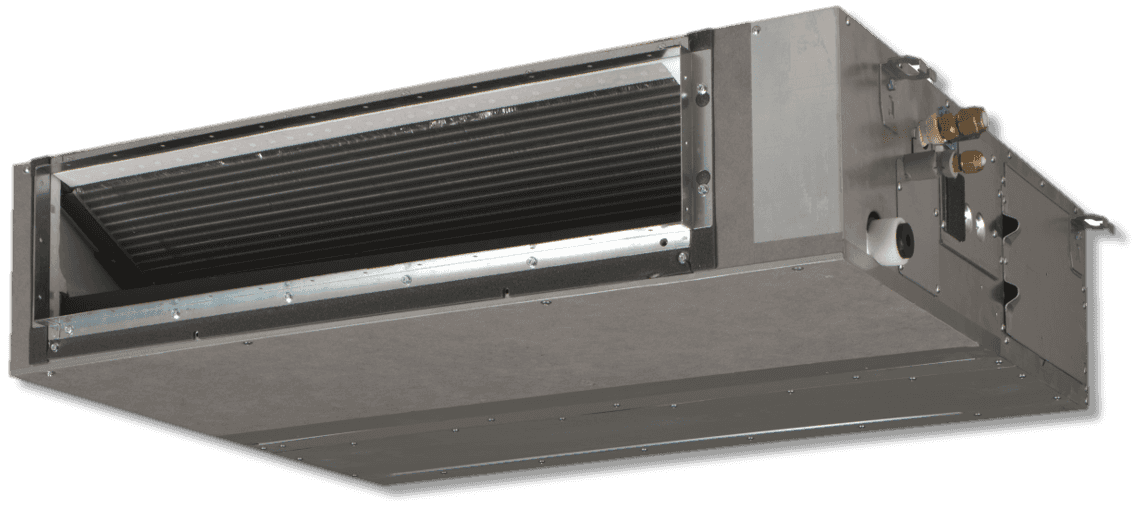

Horizontal 10'' Medium Static
5.8 to 54 MBH | Model: FXSQ_T
Recent model number update
| Model Number | Nominal Size (MBH) | CFM (High/Low) | Nominal Cooling (BTU/hr) | Nominal Heating (BTU/hr) | Dimensions (HxWxD) | Voltage | MCA (A) | MOP (A) |
|---|---|---|---|---|---|---|---|---|
| FXSQ05TBVJU | 5.8 | 281 / 265 / 230 | 5,800 | 6,500 | 208/230V - 1ph | 0.8 | 15 | |
| FXSQ07TBVJU | 7.2 | 281 / 265 / 230 | 7,200 | 8,500 | 208/230V - 1ph | 0.8 | 15 | |
| FXSQ09TBVJU | 9.5 | 318 / 265 / 230 | 9,500 | 10,500 | 208/230V - 1ph | 0.8 | 15 | |
| FXSQ12TBVJU | 12 | 335 / 283 / 247 | 12,000 | 13,500 | 208/230V - 1ph | 0.8 | 15 | |
| FXSQ15TBVJU | 15 | 530 / 441 / 371 | 15,000 | 17,000 | 208/230V - 1ph | 1.4 | 15 | |
| FXSQ18TBVJU | 18 | 600 / 512 / 406 | 18,000 | 20,000 | 208/230V - 1ph | 1.6 | 15 | |
| FXSQ24TBVJU | 24 | 742 / 618 / 512 | 24,000 | 27,000 | 208/230V - 1ph | 1.8 | 15 | |
| FXSQ30TBVJU | 30 | 812 / 689 / 565 | 30,000 | 34,000 | 208/230V - 1ph | 1.8 | 15 | |
| FXSQ36TBVJU | 36 | 1,130 / 953 / 795 | 36,000 | 40,000 | 208/230V - 1ph | 2.5 | 15 | |
| FXSQ48TBVJU | 48 | 1,307 / 1,112 / 918 | 48,000 | 54,000 | 208/230V - 1ph | 2.8 | 15 | |
| FXSQ54TBVJU | 54 | 1,377 / 1,183 / 989 | 54,000 | 60,000 | 208/230V - 1ph | 3.3 | 15 |
Notes
Features
- Low profile height of 9-5/8" for all models.
- Designed for quiet operation, with sound levels as low as 28 dB(A).
- Powerful static pressure capability, with up to 0.6" w.g. ESP.
- Ease of installation with auto adjusting airflow at commissioning based on ESP.
- Factory rear-return, field convertible to bottom-return.
- Integral condensate pump with up 25-5/16" of lift from the drain outlet.
- 10 year parts warranty.
Compatible Controls 2
Navigation Controller
Model: BRC1E73
Refrigerant: R-410A
![Navigation Controller]()
- Daikin's #1 selling thermostat
- Fully programmable and configurable
- Powered by indoor unit
Daikin One+ Thermostat
Model: DTST-ONE-ADA-A-P1P2
Refrigerant: R-410A
![Daikin One+ Thermostat]()
- Daikin's Wifi-enabled smart thermostat
- iOS, Android, Amazon Alexa, and Google Assistant
- Capacitive multi-touch display
Compatible Adaptors 3
DKN+ 3rd Party Thermostat Adaptor
Model: AZAI6WSPDKC-P1P2
Refrigerant: R-410A
![DKN+ 3rd Party Thermostat Adaptor]()
- Daikin's 3rd party thermostat adaptor
- Hard wires to conventional or smart Wifi thermostats
- Modbus and Cloud API *BETA* integration also available
Auxiliary Adaptor Board
Model: KRP1C74-75
Refrigerant: R-410A
![Auxiliary Adaptor Board]()
- Interlocks indoor unit's fan and thermal status with external equiment
- Normally open dry contacts
Group Control Adaptor
Model: KRP4A71-74
Refrigerant: R-410A
![Group Control Adaptor]()
- Input and output contacts for control and monitoring of indoor unit operation
- See: DKN+ 3rd party thermostat adaptor for more advanced version
Submittal Data Sheets
| 208/230V - 1ph | |
|---|---|
| 5.8 | FXSQ05TBVJU |
| 7.2 | FXSQ07TBVJU |
| 9.5 | FXSQ09TBVJU |
| 12 | FXSQ12TBVJU |
| 15 | FXSQ15TBVJU |
| 18 | FXSQ18TBVJU |
| 24 | FXSQ24TBVJU |
| 30 | FXSQ30TBVJU |
| 36 | FXSQ36TBVJU |
| 48 | FXSQ48TBVJU |
| 54 | FXSQ54TBVJU |
- What is the difference between the latest FXSQ_TB units versus the previous FXSQ_TA models?
The new FXSQ_TBVJU models are interchangeable with the old FXSQ_TAVJU models as dimensions have stayed the same. The new models have compliance with the new UL 60335-2-40 regulatory code. New features include: automatic fan speed capabilities for reduced energy usage, automatic airflow adjustment for shortened balancing time, improved auxiliary heat control, and built-in flow switches. Maintenance inspection and service has been simplified with an integrated drain pan inspection port. New models have seamless connectivity to all currently available outdoor unit models, controls and branch selector boxes.
