Vertical High Static ECM (0.9")

9.5 to 60 MBH | Model: FXTA_A

Refrigerant: R-32

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Voltage	MCA (A)	MOP (A)
FXTA09AAVJUD	9.5	300 / 275 / 250	9,500	10,500	208/230V - 1ph	4.9	15
FXTA12AAVJUD	12	400 / 340 / 280	12,000	13,500	208/230V - 1ph	4.9	15
FXTA18AAVJUD	18	600 / 510 / 420	18,000	20,000	208/230V - 1ph	4.9	15
FXTA24AAVJUD	24	800 / 680 / 560	24,000	27,000	208/230V - 1ph	4.9	15
FXTA30AAVJUD	30	1000 / 850 / 700	30,000	34,000	208/230V - 1ph	4.9	15
FXTA36AAVJUD	36	1050 / 900 / 750	36,000	40,000	208/230V - 1ph	4.9	15
FXTA42AAVJUD	42	1400 / 1190 / 980	42,000	46,000	208/230V - 1ph	6.5	15
FXTA48AAVJUD	48	1520 / 1290 / 1060	48,000	54,000	208/230V - 1ph	6.5	15
FXTA54AAVJUD	54	1800 / 1530 / 1260	54,000	60,000	208/230V - 1ph	8.6	15
FXTA60AAVJUD	60	1800 / 1530 / 1260	60,000	66,000	208/230V - 1ph	8.6	15

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT. Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower. Recommended heating operation range 59-80°F DB EAT and 80% RH or lower. Always use Daikin WebXpress software to understand true capacities at design conditions.

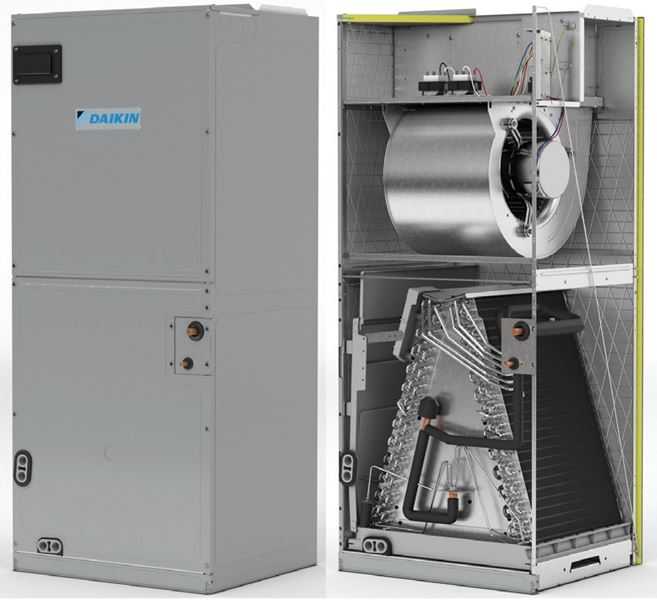

Full multi-position air handler capable of upflow, downflow, horizontal right, and horizontal left installation. Designed for quiet operation, with sound levels as low as 36 dB(A). High efficiency EC motors to deliver nominal CFM at up to 0.9” w.g. static. Designed with less than 2% air leakage when tested in accordance with ASHRAE standard 193. Optional electric heat accessories from 3kW to 25kW with single point power. Easily integrate with third party accessories such as a humidifier or economizer with on-board contacts. Options for gravity drained condensate or field installed pump. Integral coil refrigerant leak sensor as standard with circulation mode to provide full airflow when a leak is detected. 10 year parts warranty.
