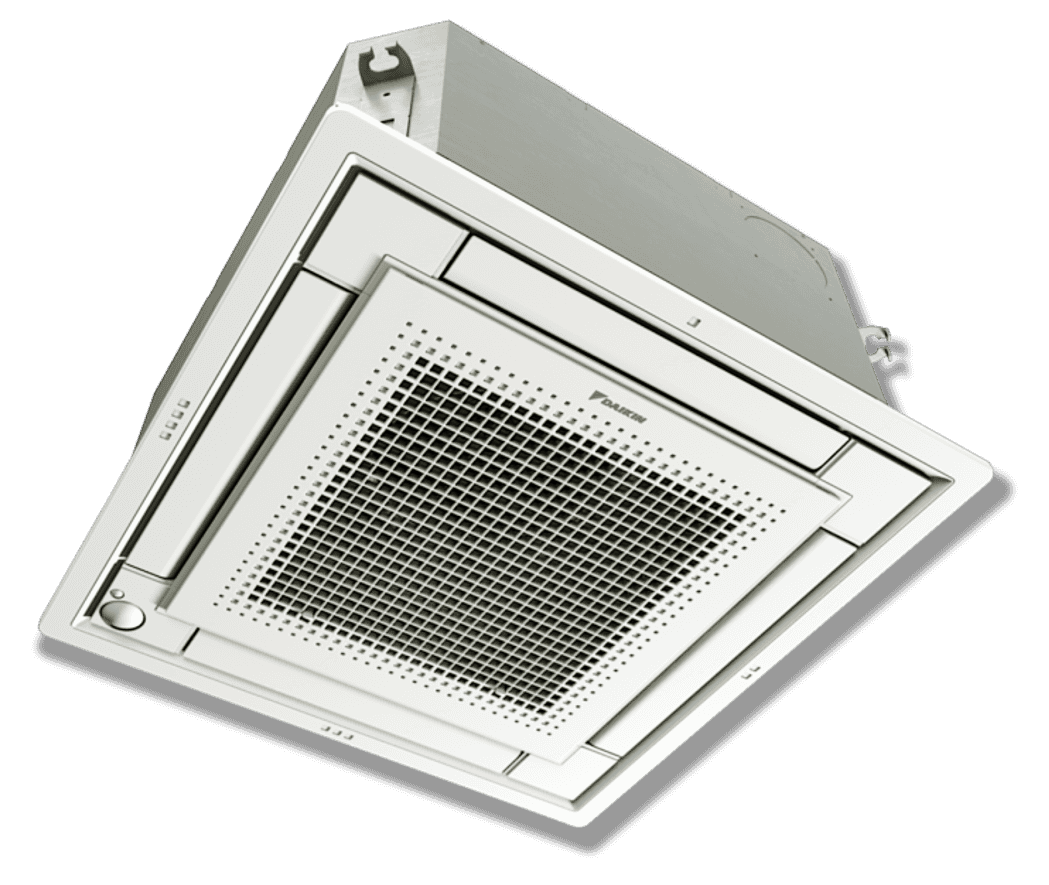

24" x 24" Vista™ Cassette

6 to 18 MBH | Model: FXZA_AA

Refrigerant: R-32

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Voltage	MCA (A)	MOP (A)
FXZA05AAVJU	5.8	300 / 247 / 229	5,800	6,500	208/230V - 1ph	0.3	15
FXZA07AAVJU	7.5	307 / 264 / 229	7,500	8,500	208/230V - 1ph	0.3	15
FXZA09AAVJU	9.5	317 / 282 / 229	9,500	10,500	208/230V - 1ph	0.3	15
FXZA12AAVJU	12	353 / 300 / 247	12,000	13,500	208/230V - 1ph	0.4	15
FXZA15AAVJU	15	405 / 335 / 282	15,000	17,000	208/230V - 1ph	0.4	15
FXZA18AAVJU	18	511 / 441 / 353	18,000	20,000	208/230V - 1ph	0.6	15

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT.
Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower.
Recommended heating operation range 59-80°F DB EAT and 80% RH or lower.
Always use Daikin WebXpress software to understand true capacities at design conditions.
Requires separate decoration panel.
