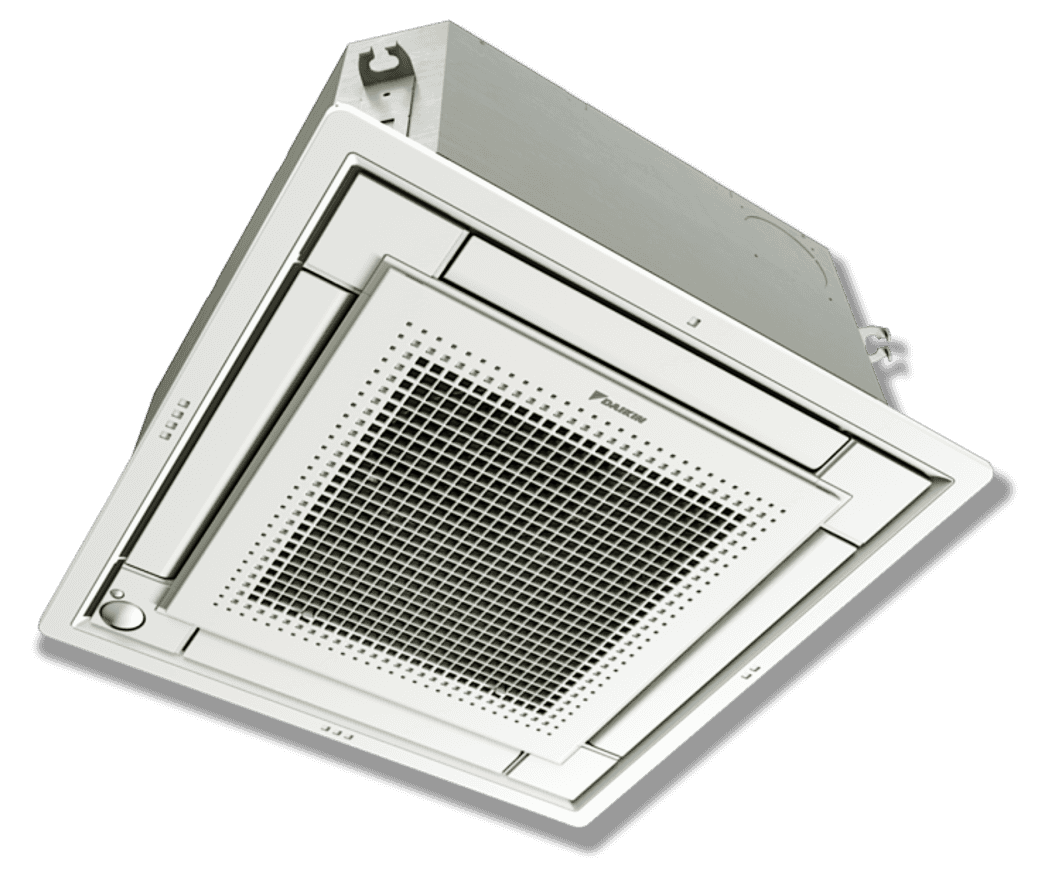

24" x 24" Vista™ Cassette

6 to 18 MBH | Model: FXZQ_T

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Voltage	MCA (A)	MOP (A)
FXZQ05TBVJU	5.8	300 / 247 / 229	5,800	6,500	208/230V - 1ph	0.3	15
FXZQ07TBVJU	7.5	307 / 264 / 229	7,500	8,500	208/230V - 1ph	0.3	15
FXZQ09TBVJU	9.5	317 / 282 / 229	9,500	10,500	208/230V - 1ph	0.3	15
FXZQ12TBVJU	12	353 / 300 / 247	12,000	13,500	208/230V - 1ph	0.4	15
FXZQ15TBVJU	15	405 / 335 / 282	15,000	17,000	208/230V - 1ph	0.4	15
FXZQ18TBVJU	18	511 / 441 / 353	18,000	20,000	208/230V - 1ph	0.6	15

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT.
Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower.
Recommended heating operation range 59-80°F DB EAT and 80% RH or lower.
Always use Daikin WebXpress software to understand true capacities at design conditions.
Requires separate decoration panel (available in silver and white).

True 2' x 2' decoration panel design simplifies ceiling coordination by eliminating overlap of adjacent ceiling tiles in a 2x2 ceiling grid.
Sound pressure levels as low as 25.5 db(A).
Factory installed washable filters.
OA integration options for up to 3% untreated OA, 10% pretreated OA.
Independently configurable auxiliary heat on/off temperature settings.
4-way, 3-way, and 2-way blow configurability.
Optional space and presence sensor kit optimizes occupant comfort and efficiency
Individual air louver control.
Integral condensate pump with up to 24-13/16'' lift.
10 year parts warranty.
