VRV Aurora Heat Recovery

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Height: 66-11/16"

Width: 48-7/8"

Depth: 30-3/16"

Model Number	Nominal Size	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Estimated Heating 0°F & -13°F (BTU/hr)	Cooling Efficiency (non-ducted) (IEER)	Heating Efficiency (non-ducted) 47°F & 17°F (COP)	Airflow (CFM)	Net Weight (lb)
RELQ72T	6 Tons	72,000	81,000	76,934 / 66,854	19	3.78 / 2.28	7,283	727
RELQ96T	8 Tons	96,000	108,000	102,822 / 89,030	18.5	3.50 / 2.25	7,989	793
RELQ120T	10 Tons	119,000	135,000	124,347 / 106,244	18	3.46 / 2.25	8,806	793

Nominal Cooling Capacities @ 95°F DB OAT; Nominal Heating Capacities @ 47°F DB
Heating operation range -22°F to 60°F
Cooling operation range 23°F to 122°F
Simultaneous low ambient cooling to -4°F possible using Daikin's Technical Cooling feature. Contact your Daikin representative for requirements.
Estimated heating capacities at lower ambient temperatures do not include derates for piping, defrost operation or connection ratios.
Always use Daikin WebXpress software to understand true system capacities including all de-rates.

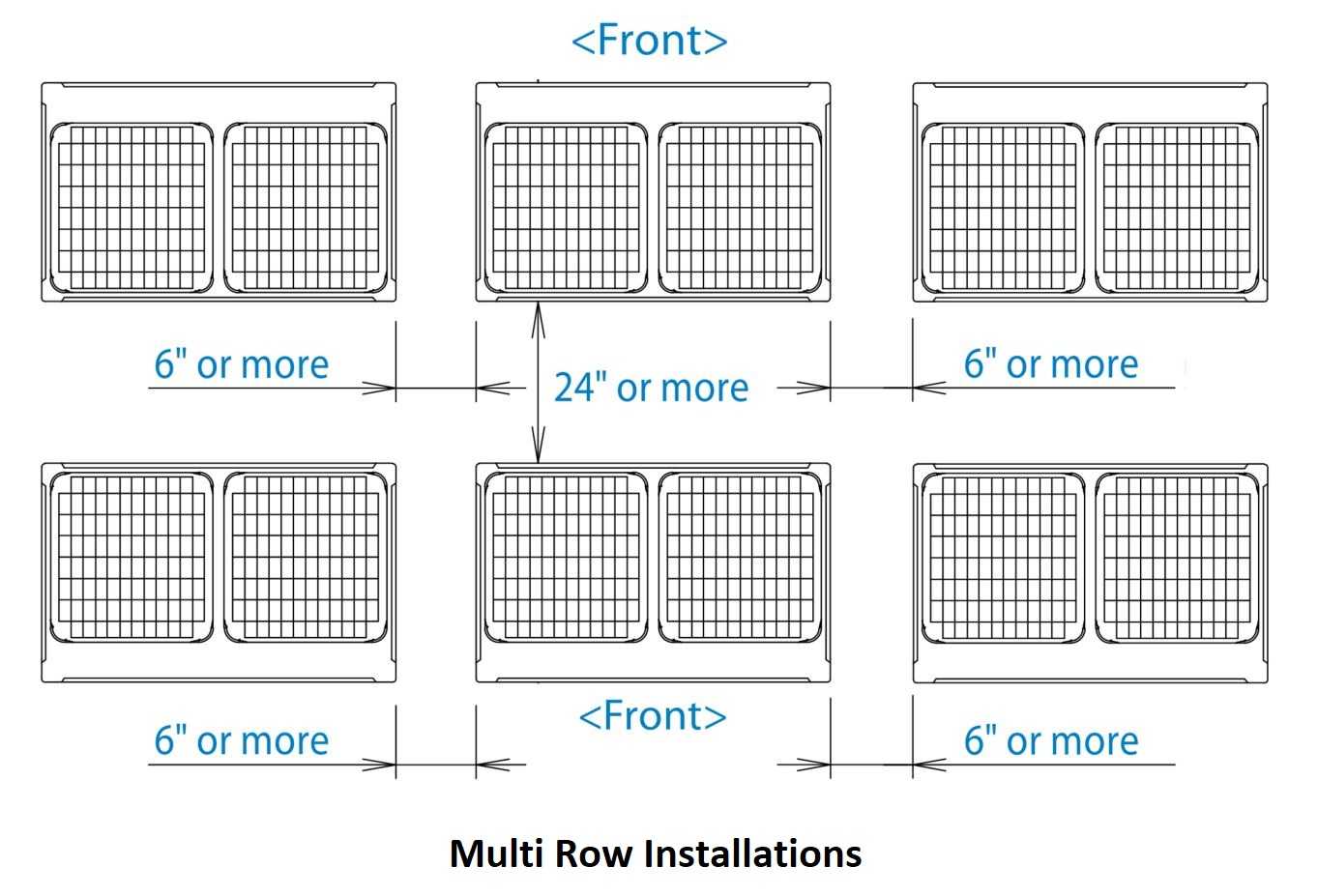

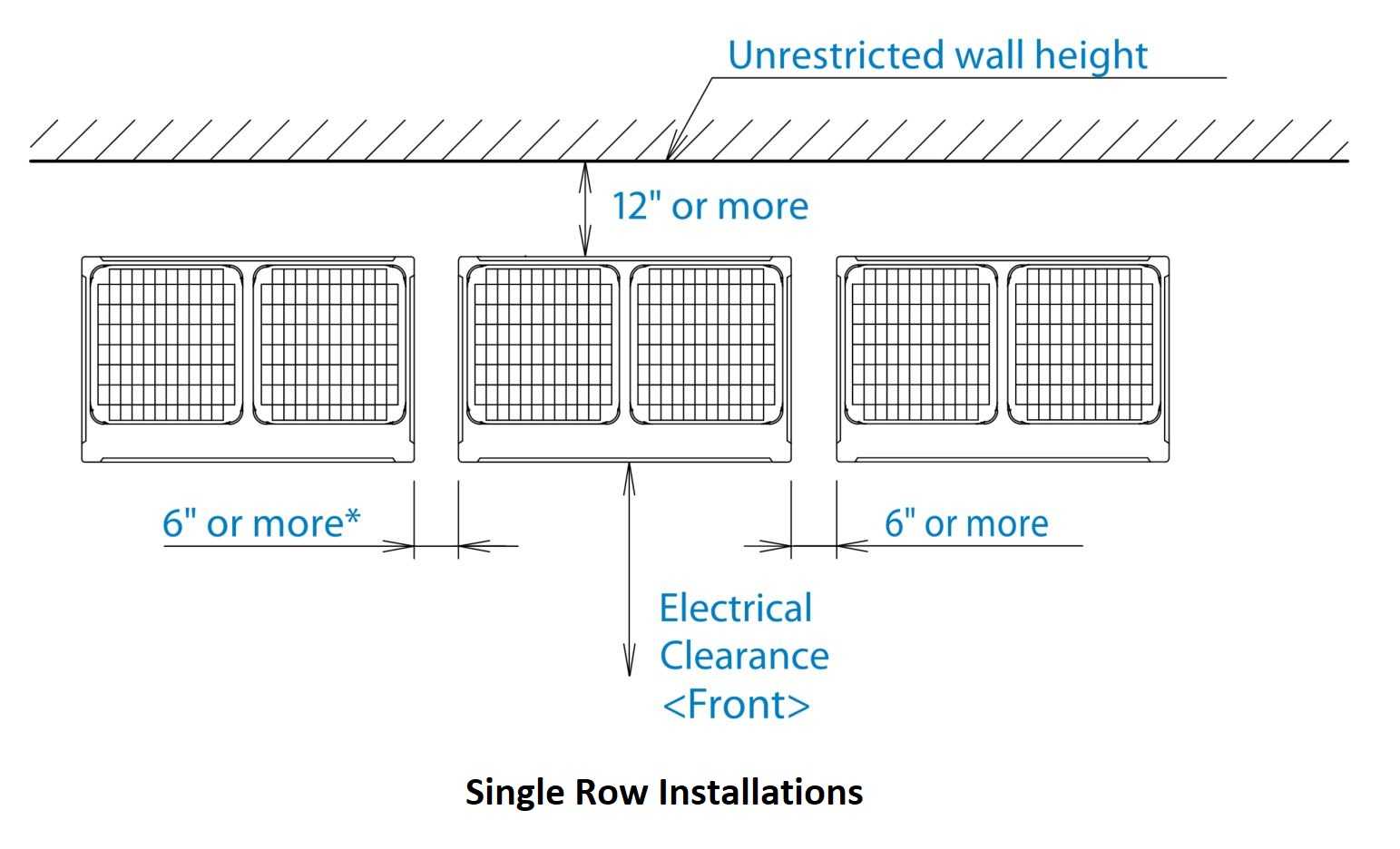

Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates)

Engineered with Daikin vapor injection compressor for optimized part load efficiencies.
Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT).
Continuous heating during defrost operation available for multi-module systems.
Hot gas refrigerant base pan circuit allows for installation without electric resistance base pan heater.
Intermittent outdoor fan operation to help minimize snow accumulation on fan blades when the system is off.
Furnished with protective coil coating to withstand ASTM B117 salt spray test for a minimum of 1000 hours.
Integration with Daikin communicating gas furnaces possible.
Assembled in the USA.
10 years parts warranty.
