VRV Emerion Heat Recovery

Refrigerant: R-32

Height: 65-3/8"

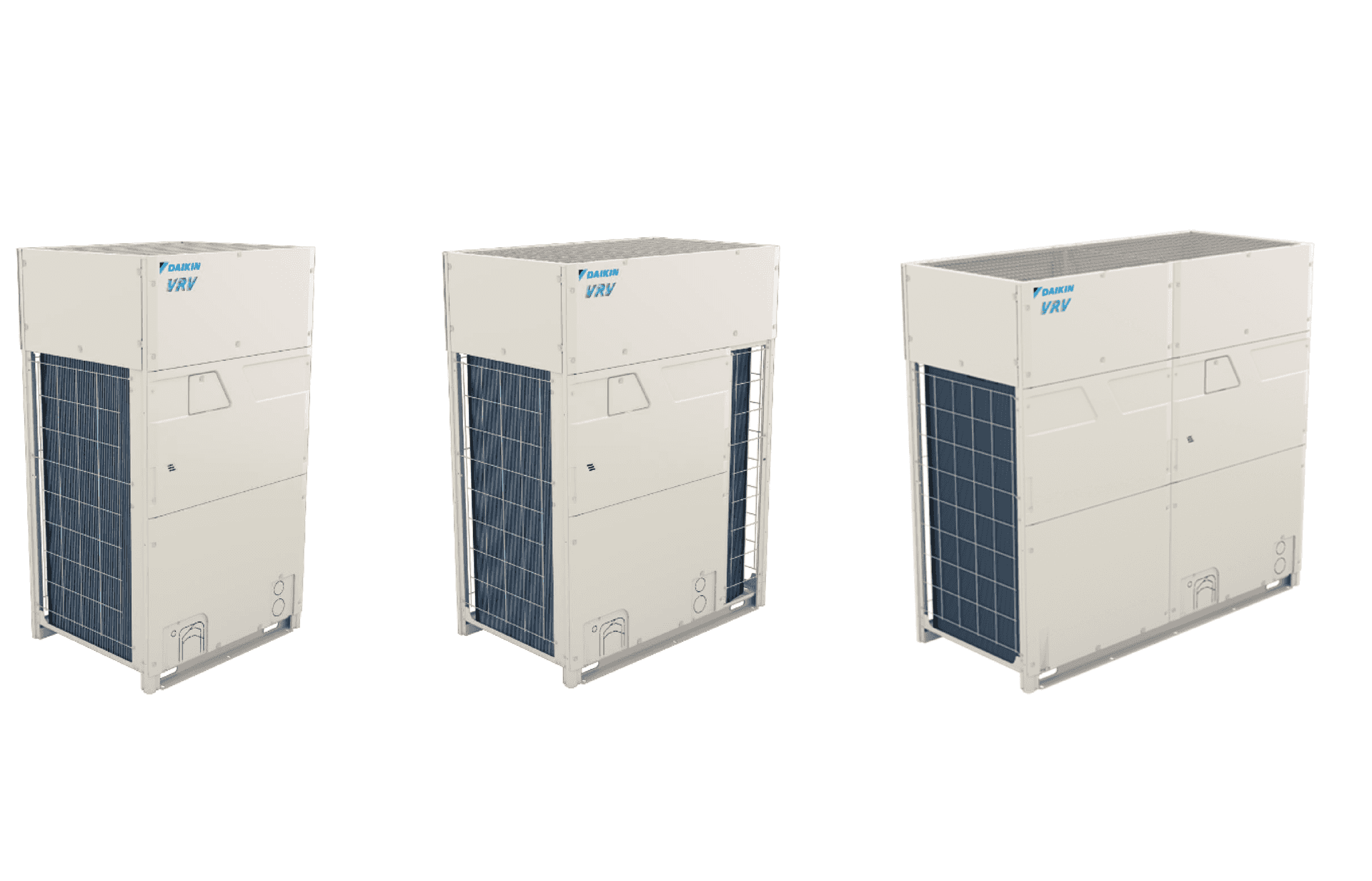

Width: 36-5/8" (6T) 48-13/16" (8-14T) 68-7/8" (16-20T)

Depth: 30-1/8"

Model Number	Nominal Size	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Estimated Heating 0°F & -13°F (BTU/hr)	Cooling Efficiency (non-ducted) (IEER)	Heating Efficiency (non-ducted) 47°F & 17°F (COP)	Airflow (CFM)	Net Weight (lb)
REYA72A	6 Tons	72,000	81,000	59,100 / 46,100	23.6	3.80 / 2.40	6,200	549
REYA96A	8 tons	96,000	108,000	79,200 / 69,200	24.2	3.80 / 2.30	8,965	736
REYA120A	10 Tons	119,000	135,000	84,800 / 74,400	23	3.50 / 2.25	8,965	739
REYA144A	12 Tons	144,000	162,000	109,000 / 95,100	22.7	3.30 / 2.10	9,675	825
REYA168A	14 Tons	162,000	189,000	109,000 / 93,900	21.7	3.30 / 2.10	9,675	827
REYA192A	16 Tons	192,000	216,000	136,000 / 119,000	22.2	3.48 / 2.25	13,650	1010
REYA216A	18 Tons	216,000	243,000	140,000 / 123,000	21.8	3.35 / 2.20	14,505	1010
REYA240A	20 Tons	238,000	270,000	142,000 / 124,000	20.4	3.30 / 2.20	14,505	1010

Nominal Cooling Capacities @ 95°F DB OAT; Nominal Heating Capacities @ 47°F DB Heating operation range -22°F to 60°F Cooling operation range 23°F to 122°F Low ambient cooling options. Estimated heating capacities at lower ambient temperatures do not include derates for piping, defrost operation or connection ratios. Always use Daikin WebXpress software to understand true system capacities including all de-rates. Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates)

New improved D4 net provides faster communication speeds and larger data volume compared to the D3 net up to 30 times the amount of data compared to D3 net Reduced install and commissioning time through auto addressing feature with D4 communications protocol Increased energy savings through new improved VRT technology with evaporation temperature control at each indoor unit (BS or SSOV required) New remote field setting option that allows data retrieval and field setting changes of units on the system from anywhere, without the need for physical access to each room New field setting that allows reuse of R410A piping network for new R32 system, eliminating need to replace for retrofit applications Vertical separation up to 361 FT with field setting Continuous heating during defrost capability with single module (16T - 20 T) and all dual module systems Hot gas defrost circuit allows for installation without base pan heater High dust and moisture protection with an IP55 rated sealed E-box Built-in data recorder to store up to 45 minutes of operational data Integrates with new Daikin HERO ecosystem, an loT based remote monitoring and diagnostics platform Engineered for ease of installation and service with three-segment panel design Extend benefits of inverter technology to custom terminal units and AHUs through AHU integration kits
