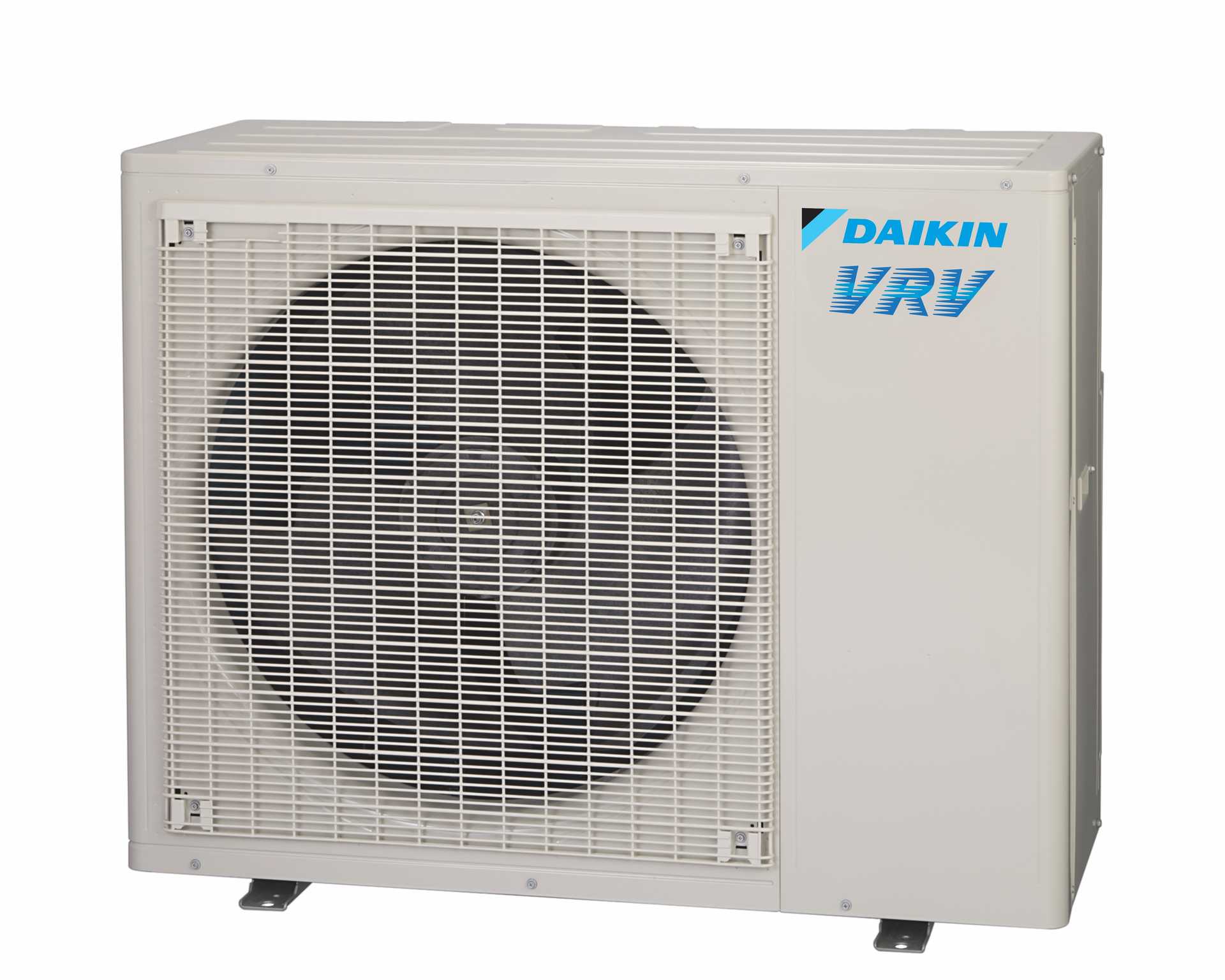

VRV-S Single Phase Heat Pump

Refrigerant: R-32

Height: 34-1/4"

Width: 43-5/16"

Depth: 18-1/8"

Model Number	Nominal Size	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Cooling Efficiency (SEER2)	Heating Efficiency (HSPF2)	Airflow (CFM)	Net Weight (lb)
RXTA24A	2 Tons	24,000	27,000	23.3	9.6	3,000	234
RXTA36A	3 Tons	36,000	40,000	23	9.6	3,000	234
RXTA48A	4 Tons	48,000	52,000	20	9.5	3,000	234
RXTA60A	5 Tons	60,000	60,000	20	9.5	3,000	234

Nominal Cooling Capacities @ 95°F DB OAT; Nominal Heating Capacities @ 47°F DB
Heating operation range -4°F to 60°F
Cooling operation range 23°F to 122°F
Low ambient cooling options.
Always use Daikin WebXpress software to understand true system capacities including all de-rates.
Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates)

New R-32 (A2L) generation in compliance with EPA mandated refrigerant transition.
One common single fan chassis for all sizes.
Increased piping capabilities of up to 164ft vertical and 984ft total.
Ability to reuse R-410A piping in most cases (Always verify with your local Daikin rep. NOT compatible with R-410A indoor units).
Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT).
Engineered with highly reliable all inverter Daikin Swing compressors with turndown to 14%.
7-Segment display for easy field setting access.
10 years parts warranty.

		MCA (A) / MOP (A)
Availability	Voltage	2 Tons	3 Tons	4 Tons	5 Tons
	208 / 60 / 1	19.8 / 20	19.8 / 20	29.4 / 30	34.6 / 35
