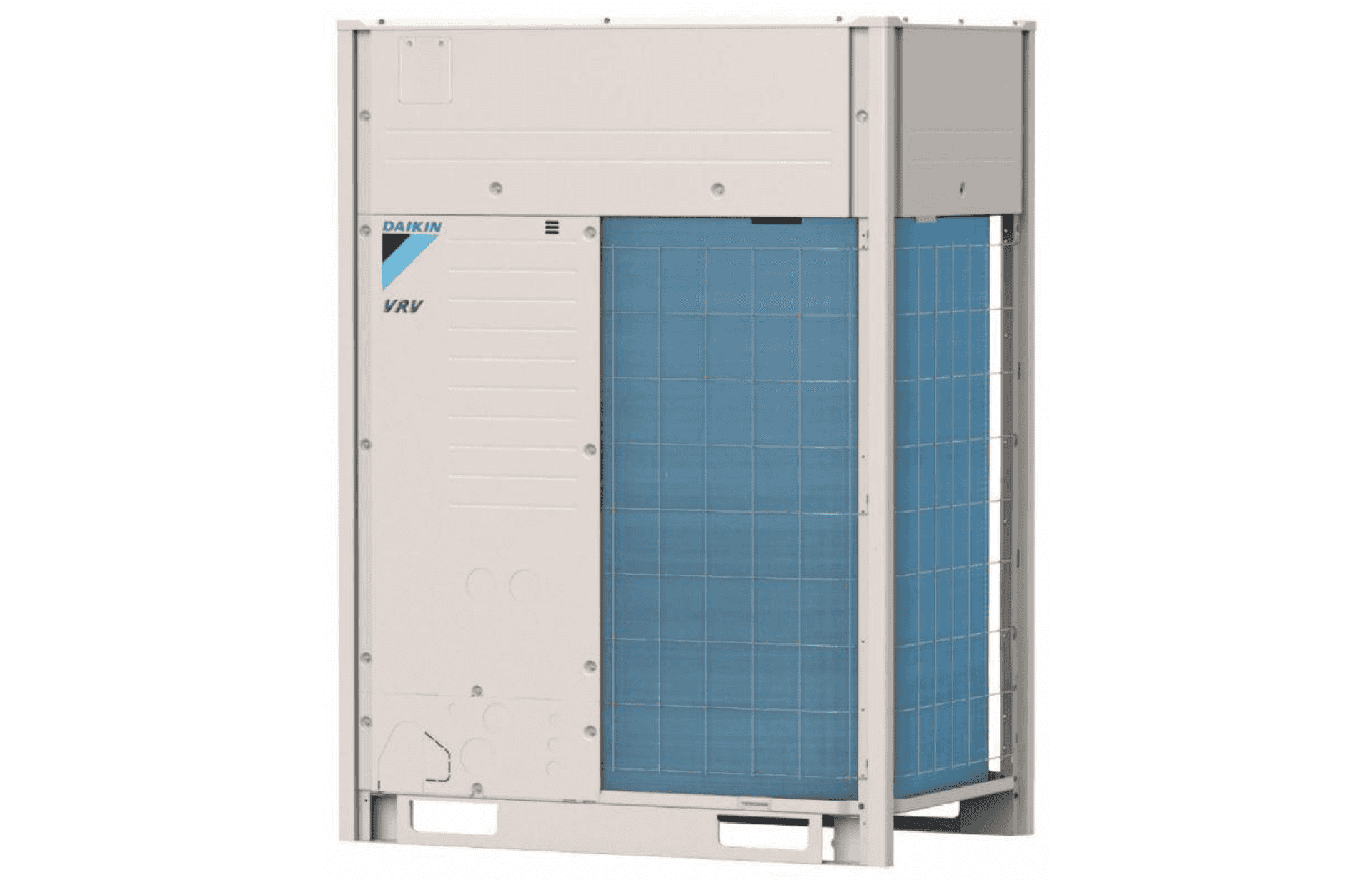

VRV-IV-X Heat Pump (575V Only)

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Height: 66-11/16"

Width: 48-7/8" (36-11/16" for 6 Ton unit)

Depth: 30-3/16"

Model Number	Nominal Size	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Cooling Efficiency (non-ducted) (IEER)	Heating Efficiency (non-ducted) 47°F & 17°F (COP)	Airflow (CFM)	Net Weight (lb)
RXYQ72X	6 Tons	72,000	81,000	25.8	3.7 / 2.4	5,544	435
RXYQ96X	8 Tons	96,000	108,000	27.3	4.0 / 2.6	5,827	525
RXYQ120X	10 Tons	120,000	135,000	25.4	3.5 / 2.3	6,286	528
RXYQ144X	12 Tons	144,000	162,000	24.8	3.6 / 2.3	8,228	695
RXYQ168X	14 Tons	164,000	188,000	22.6	3.3 / 2.3	8,228	695

Nominal Cooling Capacities @ 95°F DB OAT; Nominal Heating Capacities @ 47°F DB
Heating operation range -13°F to 60°F
Cooling operation range 23°F to 122°F
Low ambient cooling options.
Estimated heating capacities at lower ambient temperatures do not include derates for piping, defrost operation or connection ratios.
Always use Daikin WebXpress software to understand true system capacities including all de-rates.
Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates)

**ONLY AVAILABLE IN 575V MODELS**
***See Emerion Heat Pump for 208-230V and 460V 3-Phase Heat Pump Models***
Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT).
Intermittent outdoor fan operation to help minimize snow accumulation on fan blades when the system is off.
Furnished with protective coil coating to withstand ASTM B117 salt spray test for a minimum of 1000 hours.
Integration with Daikin communicating gas furnaces possible.
Assembled in the USA.
10 years parts warranty.

		MCA (A) / MOP (A)
Availability	Voltage	6 Tons	8 Tons	10 Tons	12 Tons	14 Tons
	575 / 60 / 3	15.1 / 20	16.8 / 20	18.2 / 25	22.3 / 30	24.9 / 30
