Standard Heat Pump (5F) Horizontal 10" Medium Static
0.75 to 2 Tons | Model: RX_W + FDMQ_W
***Warning: Transitioned to R-32***

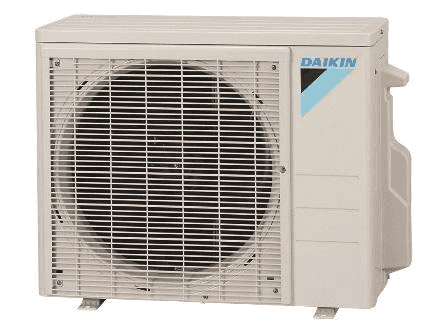

Model: RX_W
Model: FDMQ_W
| Heating Capacities (BTU/HR) | Piping | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Nominal Size (MBH) | Indoor Unit CFM (High/Medium/Low) | Nominal Cooling @95°F (BTU/HR) | 43°FWB | 5°FWB | Lineset Size | Max Total Length (ft) | Max Vertical Length (ft) | Energy Star Certified |
| FDMQ09WVJU9 + RX09WMVJU9 | 9 | 343 / 290 / 240 | 9,000 | 10,900 | 4,870 | 1/4" x 3/8" | 66 | 49 | No |
| FDMQ12WVJU9 + RX12WMVJU9 | 12 | 392 / 332 / 275 | 10,800 | 13,600 | 6,080 | 1/4" x 3/8" | 66 | 49 | No |
| FDMQ15WVJU9 + RX15WMVJU9 | 15 | 516 / 438 / 360 | 14,400 | 18,000 | 8,040 | 1/4" x 1/2" | 98 | 66 | Yes |
| FDMQ18WVJU9 + RX18WMVJU9 | 18 | 675 / 572 / 473 | 17,600 | 21,600 | 9,650 | 1/4" x 1/2" | 98 | 66 | Yes |
| FDMQ24WVJU9 + RX24WMVJU9 | 24 | 798 / 678 / 558 | 21,800 | 24,000 | 10,730 | 1/4" x 5/8" | 98 | 66 | Yes |
Features
- Anti-Corrosion Treatment on Heat Exchanger
- Factory mounted condensate lift pump (gravity drain also available on all units)
- 3 selectable fan speeds and Auto
- Auto restart after power failure (reinstates previous settings)
Other Considerations
- Indoor units are supplied without filters. Work with manufacturer's rep for field supplied filter racks with MERV8 or MERV13 filters as required.
Electrical Information
| MCA (A) / MOP (A) | ||||||
|---|---|---|---|---|---|---|
| Type | Voltage | 9 MBH | 12 MBH | 15 MBH | 18 MBH | 24 MBH |
| Outdoor unit | 208-230V / 1ph | 13 / 15 | 9.1 / 15 | 9.7 / 15 | 12.8 / 15 | 16.9 / 20 |
Compatible Controls 2
Navigation Controller
Model: BRC1E73
Refrigerant: R-410A
![Navigation Controller]()
- Daikin's #1 selling thermostat
- Fully programmable and configurable
- Powered by indoor unit
Daikin One+ Thermostat
Model: DTST-ONE-ADA-A-P1P2
Refrigerant: R-410A
![Daikin One+ Thermostat]()
- Daikin's Wifi-enabled smart thermostat
- iOS, Android, Amazon Alexa, and Google Assistant
- Capacitive multi-touch display
Compatible Adaptors 3
DKN+ 3rd Party Thermostat Adaptor
Model: AZAI6WSPDKC-P1P2
Refrigerant: R-410A
![DKN+ 3rd Party Thermostat Adaptor]()
- Daikin's 3rd party thermostat adaptor
- Hard wires to conventional or smart Wifi thermostats
- Modbus and Cloud API *BETA* integration also available
Auxiliary Adaptor Board
Model: KRP1C74-75
Refrigerant: R-410A
![Auxiliary Adaptor Board]()
- Interlocks indoor unit's fan and thermal status with external equiment
- Normally open dry contacts
Group Control Adaptor
Model: KRP4A71-74
Refrigerant: R-410A
![Group Control Adaptor]()
- Input and output contacts for control and monitoring of indoor unit operation
- See: DKN+ 3rd party thermostat adaptor for more advanced version
