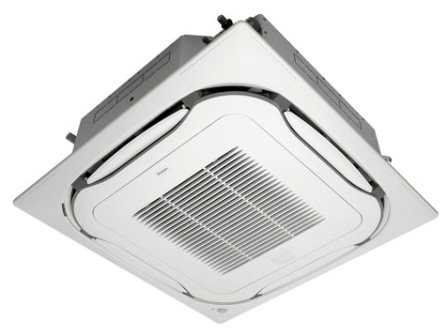

33" x 33" Round Flow Cassette

7.5 to 48 MBH | Model: FXFA_A

Refrigerant: R-32

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Voltage	MCA (A)	MOP (A)
FXFA07AAVJU	7.5	441 / 406 / 353	7,200	8,500	208/230V - 1ph	0.3	15
FXFA09AAVJU	9.5	441 / 406 / 353	9,500	10,500	208/230V - 1ph	0.3	15
FXFA12AAVJU	12	441 / 406 / 353	12,000	13,500	208/230V - 1ph	0.3	15
FXFA15AAVJU	15	512 / 459 / 388	14,400	17,000	208/230V - 1ph	0.4	15
FXFA18AAVJU	18	547 / 477 / 388	18,000	20,000	208/230V - 1ph	0.4	15
FXFA24AAVJU	24	777 / 618 / 477	23,000	27,000	208/230V - 1ph	0.5	15
FXFA30AAVJU	30	1,059 / 882 / 671	30,000	34,000	208/230V - 1ph	1	15
FXFA36AAVJU	36	1,253 / 918 / 671	36,000	40,000	208/230V - 1ph	1.6	15
FXFA48AAVJU	48	1,253 / 971 / 741	48,000	54,000	208/230V - 1ph	1.6	15
FXFA54AAVJU	54	1,253 / 1,006 / 741	54,000	60,000	208/230V - 1ph	1.6	15

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT. Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower. Recommended heating operation range 59-80°F DB EAT and 80% RH or lower. Always use Daikin WebXpress software to understand true capacities at design conditions. Requires separate decoration panel (available with self cleaning filter option).

True 360° Airflow and three room sensors enables optimized occupant comfort and efficiency. Sound pressure levels as low as 27 db(A). Factory installed washable filters as standard with options for MERV 13 filters. OA integration options for up to 20% OA using a fresh air intake kit that adds 2.36'' of height to the unit. Independently configurable auxiliary heat integration settings. Roundflow, 4-way, and 3-way blow configurability. MERV 13 air filter kit available (not compatible with self cleaning filter decoration panel). Individual air louver control. Integral condensate pump with up to 25-5/16'' of lift from the drain outlet. Integral coil refrigerant leak sensor as standard with circulation mode to provide full airflow when a leak is detected. 10 year parts warranty.
